RB4011iGS+RM

₮1,045,000.00

RB4011 series – amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

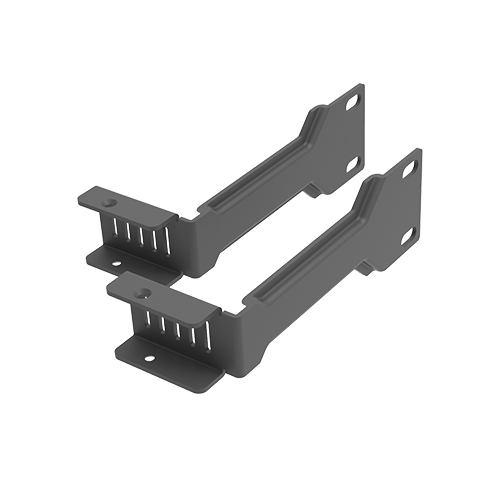

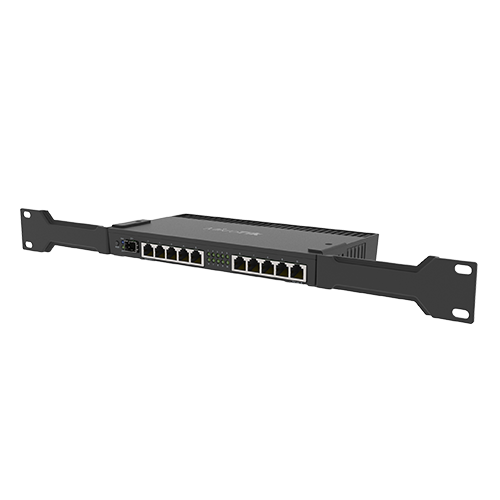

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.

Out of stock

SKU: RB4011iGS+RM Category: Tag:

Description

Specifications

Details
Product code RB4011iGS+RM
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency auto (533 – 1900) MHz
Switch chip model RTL8367SB
Dimensions 228 x 120 x 30 mm
RouterOS license 5
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 33 W
Max power consumption without attachments 18 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 600 mA

Ethernet

Details
10/100/1000 Ethernet ports 10

Fiber

Details
SFP+ ports 1

Peripherals

Details
Serial console port RJ45

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20



Ethernet test results

RB4011iGS+RM AL21400 1G/S+ all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 806,4 9,792.9 2312,9 9,473.6 5509,7 2,821.0
Bridging 25 bridge filter rules 806,4 9,792.9 1037,4 4,249.2 1153,2 590.4
Routing none (fast path) 806,4 9,792.9 1923,3 7,877.8 5092,3 2,607.3
Routing 25 simple queues 806,4 9,792.9 1046,6 4,286.9 960,3 491.7
Routing 25 ip filter rules 593,7 7,209.9 625,2 2,560.8 564,6 289.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB4011iGS+RM AL21400 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 92.1 1031.5 93.1 381.3 92.3 47.3
256 tunnels AES-128-CBC + SHA1 115.5 1293.6 117.4 480.9 132.3 67.7
256 tunnels AES-128-CBC + SHA256 115.5 1293.6 117.4 480.9 132.3 67.7
256 tunnels AES-256-CBC + SHA1 114.6 1283.5 111.4 456.3 126.3 64.7
256 tunnels AES-256-CBC + SHA256 114.6 1283.5 111.4 456.3 126.3 64.7
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
