Description
Specifications

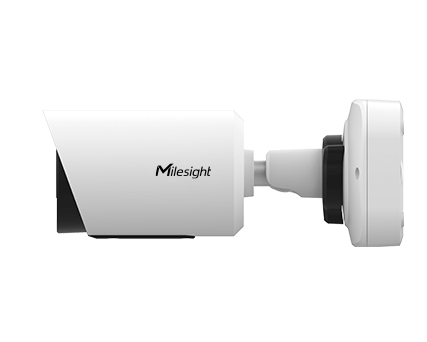

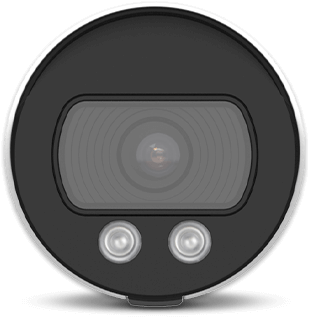

| Camera | Name | 5MP AI Color+ Vandal-proof Mini Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux@F1.0 | |
| WDR | 120dB Super WDR | |
| Lens | 2.8mm/4mm@F1.0 | |
| Field of View | H105°/D131°/V78°(2.8mm) H86°/D108°/V63°(4mm) | |
| Shutter Time | 1/100000s∼1s | |
| Illumination Distance | Up to 30m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 2592×1944 |
| Frame Rate | 60Hz: 30fps@(2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576) 50Hz: 25fps@(2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576) | |
| Secondary Stream | 60Hz: 30fps@(704×576, 640×480, 640×360, 352×288) 50Hz: 25fps@(704×576, 640×480, 640×360, 352×288) | |
| Tertiary Stream | 60Hz: 30fps@(1280×720, 704×576, 640×480, 640×360, 352×288) 50Hz: 25fps@(1280×720, 704×576, 640×480, 640×360, 352×288) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af) | |
| Power Consumption | 3W MAX, 5W MAX ((With LED Light on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Weight | 610g(Junction Box Version) / 450g(Cable Out Version) | |
| Dimensions | 97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version) | |
| Warranty | 3/5 Years |
- Naming Convention
- R – High Frame Rate (60fps)
- U – Full-color Supported
- P – PoE Supported
- D – AI Series
